VCI HOBBY 2207 LT

Listed as: VCI HOBBY 2207 LT - (Fire)

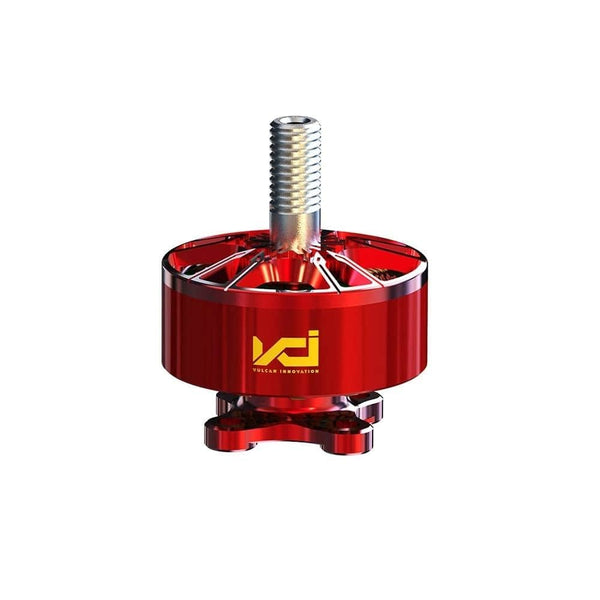

VCI HOBBY 2207 LT
Image: racedayquads.com
Stator2207
KV options2160
Weight30.0 g
Shaft5mm
Max cells6S
Configuration12S14P
DimensionsØ26x31.4 mm
Winding resistance60 mOhm
Max thrust1923 g
Price (approx.)20.49 USD

At 30 g it is 3.1 g lighter than average across the 40 2207-class motors in our database (avg 33.1 g).

Thrust data (VCI HOBBY bench test)

KVPropBatteryThrottleCurrentRPMThrustEfficiency
2160 GF 5127.5-3 6S 30 2.0 A 13457 182 g 3.79 g/W
2160 GF 5127.5-3 6S 40 4.57 A 17714 359 g 3.27 g/W
2160 GF 5127.5-3 6S 50 8.3 A 21375 632 g 3.17 g/W
2160 GF 5127.5-3 6S 60 13.62 A 25002 868 g 2.66 g/W
2160 GF 5127.5-3 6S 70 20.19 A 27830 1102 g 2.27 g/W
2160 GF 5127.5-3 6S 80 28.18 A 31191 1416 g 2.09 g/W
2160 GF 5127.5-3 6S 90 37.71 A 33480 1641 g 1.81 g/W
2160 GF 5127.5-3 6S 100 45.67 A 34354 1835 g 1.67 g/W
2160 GF 5129-3 6S 30 2.02 A 13457 232 g 4.79 g/W
2160 GF 5129-3 6S 40 4.71 A 17714 416 g 3.68 g/W
2160 GF 5129-3 6S 50 8.63 A 21375 680 g 3.28 g/W
2160 GF 5129-3 6S 60 14.14 A 25002 950 g 2.8 g/W
2160 GF 5129-3 6S 70 20.99 A 27830 1217 g 2.42 g/W
2160 GF 5129-3 6S 80 29.55 A 31191 1541 g 2.17 g/W
2160 GF 5129-3 6S 90 39.16 A 33480 1802 g 1.92 g/W
2160 GF 5129-3 6S 100 47.01 A 34354 1923 g 1.7 g/W
2160 GF 51366-3 6S 30 2.0 A 13574 227 g 4.73 g/W
2160 GF 51366-3 6S 40 4.68 A 17011 428 g 3.81 g/W
2160 GF 51366-3 6S 50 8.54 A 19630 616 g 3.01 g/W
2160 GF 51366-3 6S 60 14.05 A 22522 907 g 2.69 g/W
2160 GF 51366-3 6S 70 20.71 A 25735 1185 g 2.38 g/W
2160 GF 51366-3 6S 80 28.85 A 28711 1419 g 2.05 g/W
2160 GF 51366-3 6S 90 38.33 A 31877 1686 g 1.83 g/W
2160 GF 51366-3 6S 100 46.3 A 33459 1815 g 1.63 g/W

Manufacturer bench figures (VCI Hobby bench, 2160 KV at 6S (24 V), 8 throttle points (30-100%) on each of three 5.1in props); real-world thrust varies with ESC, battery sag and prop condition.

Thrust-to-weight with this motor

RPM & prop speed on this motor

Props in this motor's class

PropSizeBladesWeight
Gemfan Long Range 5126-2 Durable 1.5mm T-Mount 5.1x2.7 2 2.6 g
HQProp DP 5.1x2.5x3 5.1x2.5 3 3.1 g
HQProp Juicy J37 4.9x3.7 3 3.4 g
HQProp Juicy J40 5.1x4.0 3 3.4 g
Gemfan 4935 Sbang 3-Blade 4.9x3.5 3 3.45 g

Where this data comes from

The rows are VCI Hobby's own 'Testing Data' table, published as an image in the Specifications tab of the motor's product page on vcihobby.com. One winding, three props, eight throttle points each at a fixed 24 V, and every row reproduces both of the sheet's identities (printed Power = 24 V x printed current, printed Efficiency = Thrust / Power). The cross-check against the sheet's own Specifications panel lands on a row: its 47.01 A / 1128.24 W is the GF 5129-3 100% row. Identity with our retail listing is 2160 KV, the 2207 stator (the panel prints Ø22*L7 mm), the M5 shaft, 6S and 30 g including cable. ONE SOURCE FACT RECORDED RATHER THAN REPAIRED: the GF 5127.5-3 and GF 5129-3 runs print an IDENTICAL RPM column - 13457, 17714, 21375, 25002, 27830, 31191, 33480, 34354 on both - which two bench runs do not produce; the third prop's column differs throughout. Both are published as printed. The panel also prints the magnets as '55SH', where the Spark sheets of the same stator print 'N52SH'.
