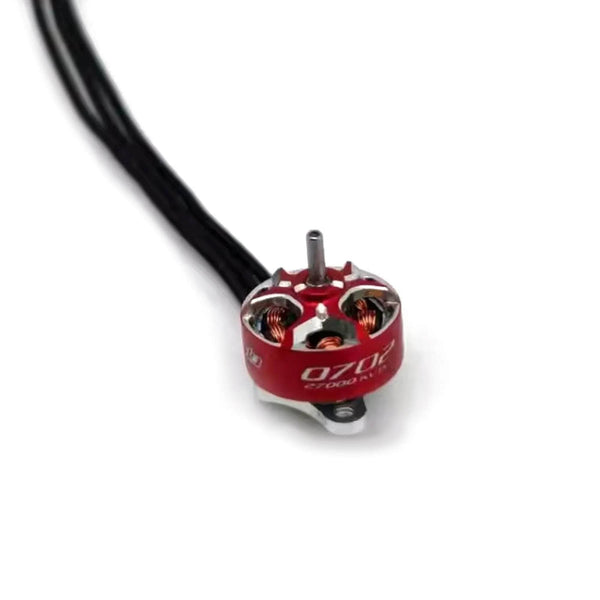

RCINPOWER GTS V3 0702 Red/Silver
Listed as: RCINPOWER GTS V3 0702 - Red/Silver
| Stator | 0702 |
|---|---|
| KV options | 27000, 29000 |
| Weight | 1.5 g |
| Shaft | 1mm |
| Max cells | 1S |
| Configuration | 9N12P |
| Dimensions | Ø9.6x8.1 mm |
| Winding resistance | 210 mOhm |
| Max thrust | 34 g |
| Price (approx.) | 14.49 USD |
At 1.5 g it is right at the class average across the 11 0702-class motors in our database (avg 1.49 g).
Thrust data (RCINPOWER bench test)
| KV | Prop | Battery | Throttle | Current | RPM | Thrust | Efficiency |
|---|---|---|---|---|---|---|---|
| 29000 | Gemfan 1210*2 | 1S | 50 | 2.7 A | — | 19 g | 1.675 g/W |
| 29000 | Gemfan 1210*2 | 1S | 100 | 4.3 A | — | 30 g | 1.661 g/W |
| 29000 | Gemfan 1208*3 | 1S | 50 | 2.6 A | — | 18 g | 1.648 g/W |
| 29000 | Gemfan 1208*3 | 1S | 100 | 4.2 A | — | 29 g | 1.644 g/W |
| 29000 | Gemfan 1219*3 | 1S | 50 | 3.0 A | — | 22 g | 1.746 g/W |
| 29000 | Gemfan 1219*3 | 1S | 100 | 4.5 A | — | 34 g | 1.799 g/W |
| 29000 | Gemfan 35mm*3 | 1S | 50 | 2.9 A | — | 24 g | 1.97 g/W |
| 29000 | Gemfan 35mm*3 | 1S | 100 | 4.7 A | — | 32 g | 1.621 g/W |
Manufacturer bench figures (RCinPower bench, four whoop props at 4.2 V (1S), 50% and 100% throttle; no RPM published); real-world thrust varies with ESC, battery sag and prop condition.
Thrust-to-weight with this motor
RPM & prop speed on this motor
Props in this motor's class
| Prop | Size | Blades | Weight |
|---|---|---|---|
| weBLEEDfpv HQ Ultralight Whoop 31MM | 1.22x1.0 | 3 | 0.16 g |
| HQProp 40MMX2 Ultralight 40mm Micro/Whoop | 1.6x1.2 | 2 | 0.2 g |
| Gemfan 35MMS 3-Blade | 1.4x0.96 | 3 | 0.24 g |
| HQProp 40mm Ultralight 3-Blade | 1.6x1.0 | 3 | 0.25 g |
| HQProp Ultralight 31MMX3 31mm Micro/Whoop | 1.22x1.0 | 3 | 0.27 g |
Where this data comes from
RCinPower publishes no GTS V3 0702 sheet at any id on its own G-SERIES index; this one is the test-report image on the retail listing, headed "GTS V3 0702-29000KV". 9N12P, 7x2 mm stator, 1 mm shaft (1.5 mm inside), 9.6x8.1 mm, 1.5 g with plug, idle 0.25 A at 5 V, 1S, 210 mOhm. The spec block's own maxima are the bottom row of its table: 19.7 W and 4.7 A are the Gemfan 35mm*3 full-throttle run. The block labels them "Max Continuous Power(W)3S" and "Max Current(3S)" on a motor its own next line rates 1S. Temperature after 3 s at full throttle: 68-73 degC
