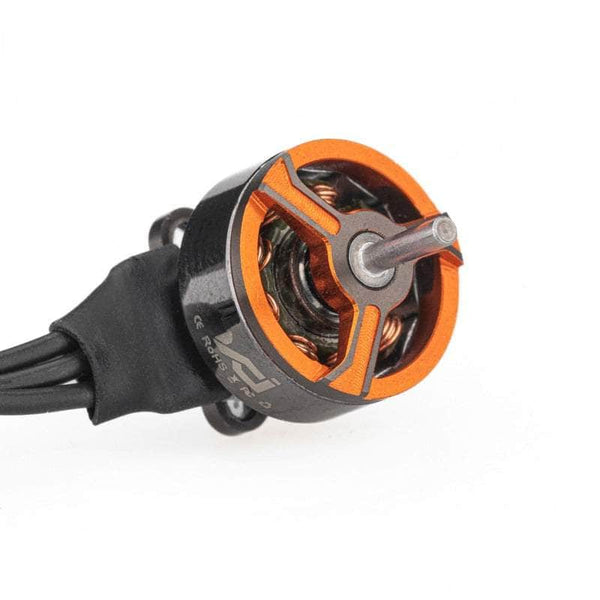

VCI HOBBY Spark 0702

VCI HOBBY Spark 0702
Image: racedayquads.com
Stator0702
KV options22000, 29000
Weight1.52 g
Shaft1mm
Max cells1S
Configuration9S12P
Dimensions9x12.2 mm
Winding resistance350 (22000KV) / 275 (29000KV) mOhm
Max thrust26.0 g
Price (approx.)43.99 USD

At 1.52 g it is right at the class average across the 11 0702-class motors in our database (avg 1.49 g).

Thrust data (VCI HOBBY bench test)

KVPropBatteryThrottleCurrentRPMThrustEfficiency
22000 GF 35mm-3 1S — 0.5 A — 3.4 g 1.7 g/W
22000 GF 35mm-3 1S — 1.0 A — 7.1 g 1.78 g/W
22000 GF 35mm-3 1S — 1.5 A — 10.7 g 1.78 g/W
22000 GF 35mm-3 1S — 2.0 A — 15.6 g 1.95 g/W
22000 GF 35mm-3 1S — 2.5 A — 20.7 g 2.07 g/W
22000 GF 35mm-3 1S — 3.0 A — 24.2 g 2.02 g/W
22000 GF 35mm-3 1S — 3.3 A — 26.0 g 1.97 g/W
22000 GF 31mm-3 1S — 0.5 A — 2.7 g 1.35 g/W
22000 GF 31mm-3 1S — 1.0 A — 5.9 g 1.48 g/W
22000 GF 31mm-3 1S — 1.5 A — 9.6 g 1.6 g/W
22000 GF 31mm-3 1S — 2.0 A — 14.8 g 1.85 g/W
22000 GF 31mm-3 1S — 2.5 A — 19.8 g 1.98 g/W
22000 GF 31mm-3 1S — 3.0 A — 23.8 g 1.98 g/W
22000 GF 31mm-2 1S — 0.5 A — 3.0 g 1.5 g/W
22000 GF 31mm-2 1S — 1.0 A — 6.5 g 1.63 g/W
22000 GF 31mm-2 1S — 1.5 A — 10.4 g 1.73 g/W
22000 GF 31mm-2 1S — 2.0 A — 15.2 g 1.9 g/W
22000 GF 31mm-2 1S — 2.5 A — 20.1 g 2.01 g/W
22000 GF 31mm-2 1S — 3.0 A — 24.0 g 2.0 g/W
29000 GF 35mm-3 1S — 0.5 A — 2.5 g 1.25 g/W
29000 GF 35mm-3 1S — 1.0 A — 5.2 g 1.3 g/W
29000 GF 35mm-3 1S — 1.5 A — 7.3 g 1.22 g/W
29000 GF 35mm-3 1S — 2.0 A — 10.6 g 1.33 g/W
29000 GF 35mm-3 1S — 2.5 A — 14.0 g 1.4 g/W
29000 GF 35mm-3 1S — 3.0 A — 18.5 g 1.54 g/W
29000 GF 35mm-3 1S — 3.5 A — 22.2 g 1.59 g/W
29000 GF 35mm-3 1S — 4.0 A — 24.8 g 1.55 g/W
29000 GF 31mm-3 1S — 0.5 A — 2.1 g 1.05 g/W
29000 GF 31mm-3 1S — 1.0 A — 4.1 g 1.03 g/W
29000 GF 31mm-3 1S — 1.5 A — 6.3 g 1.05 g/W
29000 GF 31mm-3 1S — 2.0 A — 9.5 g 1.19 g/W
29000 GF 31mm-3 1S — 2.5 A — 13.7 g 1.37 g/W
29000 GF 31mm-3 1S — 3.0 A — 17.7 g 1.48 g/W
29000 GF 31mm-3 1S — 3.9 A — 22.9 g 1.47 g/W
29000 GF 31mm-2 1S — 0.5 A — 1.8 g 0.9 g/W
29000 GF 31mm-2 1S — 1.0 A — 4.0 g 1.0 g/W
29000 GF 31mm-2 1S — 1.5 A — 6.2 g 1.03 g/W
29000 GF 31mm-2 1S — 2.0 A — 9.7 g 1.21 g/W
29000 GF 31mm-2 1S — 2.5 A — 14.2 g 1.42 g/W
29000 GF 31mm-2 1S — 3.0 A — 19.1 g 1.59 g/W
29000 GF 31mm-2 1S — 3.8 A — 23.6 g 1.55 g/W

Manufacturer bench figures (VCI Hobby bench, 22000 and 29000 KV at 1S (4 V) on three props each, stepped by current rather than throttle); real-world thrust varies with ESC, battery sag and prop condition.

Thrust-to-weight with this motor

RPM & prop speed on this motor

Props in this motor's class

PropSizeBladesWeight
weBLEEDfpv HQ Ultralight Whoop 31MM 1.22x1.0 3 0.16 g
HQProp 40MMX2 Ultralight 40mm Micro/Whoop 1.6x1.2 2 0.2 g
Gemfan 35MMS 3-Blade 1.4x0.96 3 0.24 g
HQProp 40mm Ultralight 3-Blade 1.6x1.0 3 0.25 g
HQProp Ultralight 31MMX3 31mm Micro/Whoop 1.22x1.0 3 0.27 g

Where this data comes from

The rows are VCI Hobby's own 'Testing Dates' tables, one per winding, published as images on the motor's RaceDayQuads listing rather than on vcihobby.com: VCI's own catalogue has no id for this motor at all - the 0702 line there is now the PRO LITE and the PRO DB - so the retailer's copy of the maker's sheet is the only surviving publication of it. THESE SHEETS STEP THE CURRENT, NOT THE THROTTLE: the columns are Model / Propeller / Voltage / Current / Thrust / Efficiency / Power / Temperature, the rows walk 0.50 A upwards to each winding's peak, and there is no throttle and no RPM column at all, so both are empty on every row here. Every one of the 41 rows reproduces both of the sheets' own identities: the printed Power is 4 V x the printed current, and the printed Efficiency is Thrust / that Power. The cross-check against each Specifications panel lands on a row: the 22000 KV panel's 3.3 A / 13.2 W and the 29000 KV panel's 4 A / 16 W are each that winding's GF 35mm-3 last row. Identity with our two retail listings is nine figures to the digit - 9S12P, Ø7*L2 mm stator, Ø9*L12.2 mm body, Ø1 mm shaft, 1S (4 V), 30AWG 30 mm leads, 350 and 275 mOhm and 1.53 / 1.52 g including cable, where weight_g holds the 29000 KV figure our source sold first. MAX THRUST READS 26.00 g, the 22000 KV winding's GF 35mm-3 peak, against 24.80 g for the 29000 KV. Temperature is one figure per prop run and not per row (53-68 C over the six runs), so it is not carried. The listing's third image is VCI's dimension drawing, which calls out 3-M1.4 EQS on a Ø6.6 bolt circle: a three-hole mount, so mount_mm stays empty.
