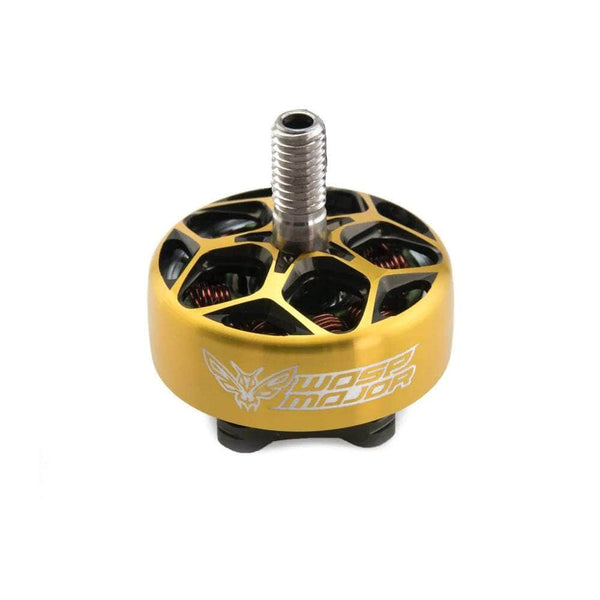

RCINPOWER Wasp Major 22.6-6.5 2206.5

RCINPOWER Wasp Major 22.6-6.5 2206.5
Image: racedayquads.com
Stator2206.5
KV options1860, 2420
Weight30.5 g
Shaft4mm hollow
Max cells4-5S
Configuration12N14P
DimensionsØ28.49x30.6 mm
Winding resistance64 (1860KV) / 49 (2020KV) / 34 (2420KV) mOhm
Max thrust2410 g
Price (approx.)23.99 USD

Thrust data (RCINPOWER bench test)

KVPropBatteryThrottleCurrentRPMThrustEfficiency
1860 HQ EthiX S4 5S 50 4.9 A — 565 g 5.491 g/W
1860 HQ EthiX S4 5S 100 21.5 A — 1548 g 3.429 g/W
1860 HQ EthiX S4 6S 50 5.8 A — 709 g 5.093 g/W
1860 HQ EthiX S4 6S 100 26.5 A — 1875 g 2.948 g/W
1860 HQ EthiX S5 5S 50 5.2 A — 605 g 5.54 g/W
1860 HQ EthiX S5 5S 100 24.8 A — 1636 g 3.141 g/W
1860 HQ EthiX S5 6S 50 6.7 A — 775 g 4.82 g/W
1860 HQ EthiX S5 6S 100 31.6 A — 2049 g 2.702 g/W
1860 DAL T5147.5 5S 50 4.4 A — 556 g 6.017 g/W
1860 DAL T5147.5 5S 100 20.7 A — 1571 g 3.614 g/W
1860 DAL T5147.5 6S 50 5.0 A — 689 g 5.742 g/W
1860 DAL T5147.5 6S 100 26.2 A — 1938 g 3.082 g/W
1860 GF 5152 5S 50 5.6 A — 648 g 5.51 g/W
1860 GF 5152 5S 100 26.5 A — 1635 g 2.938 g/W
1860 GF 5152 6S 50 6.6 A — 756 g 4.773 g/W
1860 GF 5152 6S 100 31.3 A — 1879 g 2.501 g/W
1860 GF 6*4.5*2 5S 50 6.2 A — 806 g 6.19 g/W
1860 GF 6*4.5*2 5S 100 27.3 A — 1978 g 3.45 g/W
1860 GF 6*4.5*2 6S 50 6.4 A — 815 g 5.306 g/W
1860 GF 6*4.5*2 6S 100 33.3 A — 2313 g 2.894 g/W
2020 HQ EthiX S4 5S 50 6.0 A — 642 g 5.095 g/W
2020 HQ EthiX S4 5S 100 26.6 A — 1724 g 3.086 g/W
2020 HQ EthiX S4 6S 50 6.7 A — 754 g 4.689 g/W
2020 HQ EthiX S4 6S 100 32.4 A — 2039 g 2.622 g/W
2020 HQ EthiX S5 5S 50 6.7 A — 705 g 5.011 g/W
2020 HQ EthiX S5 5S 100 31.2 A — 1852 g 2.827 g/W
2020 HQ EthiX S5 6S 50 8.3 A — 853 g 4.282 g/W
2020 HQ EthiX S5 6S 100 38.0 A — 2195 g 2.407 g/W
2020 DAL T5147.5 5S 50 5.2 A — 604 g 5.531 g/W
2020 DAL T5147.5 5S 100 25.3 A — 1721 g 3.239 g/W
2020 DAL T5147.5 6S 50 7.1 A — 809 g 4.748 g/W
2020 DAL T5147.5 6S 100 32.2 A — 2069 g 2.677 g/W
2020 GF 5152 5S 50 5.8 A — 677 g 5.558 g/W
2020 GF 5152 5S 100 30.6 A — 1715 g 2.669 g/W
2020 GF 5152 6S 50 8.6 A — 817 g 3.958 g/W
2020 GF 5152 6S 100 37.8 A — 2013 g 2.219 g/W
2020 GF 6*4.5*2 5S 50 7.4 A — 870 g 5.598 g/W
2020 GF 6*4.5*2 5S 100 33.5 A — 2179 g 3.097 g/W
2420 HQ EthiX S4 4S 50 6.6 A — 580 g 5.492 g/W
2420 HQ EthiX S4 4S 100 27.7 A — 1480 g 3.339 g/W
2420 HQ EthiX S4 5S 50 9.4 A — 863 g 4.372 g/W
2420 HQ EthiX S4 5S 100 38.2 A — 1985 g 2.474 g/W
2420 HQ EthiX S5 4S 50 8.3 A — 669 g 5.038 g/W
2420 HQ EthiX S5 4S 100 31.9 A — 1589 g 3.113 g/W
2420 HQ EthiX S5 5S 50 10.6 A — 851 g 3.823 g/W
2420 HQ EthiX S5 5S 100 44.9 A — 2035 g 2.158 g/W
2420 DAL T5147.5 4S 50 5.2 A — 598 g 7.188 g/W
2420 DAL T5147.5 4S 100 25.3 A — 1703 g 4.207 g/W
2420 DAL T5147.5 5S 50 7.1 A — 801 g 5.372 g/W
2420 DAL T5147.5 5S 100 32.2 A — 2049 g 3.03 g/W
2420 GF 5152 4S 50 8.3 A — 635 g 4.782 g/W
2420 GF 5152 4S 100 31.8 A — 1496 g 2.94 g/W
2420 GF 5152 5S 50 9.3 A — 800 g 4.096 g/W
2420 GF 5152 5S 100 43.3 A — 1941 g 2.135 g/W
2420 GF 6*4.5*2 4S 50 7.5 A — 744 g 6.2 g/W
2420 GF 6*4.5*2 4S 100 34.0 A — 1870 g 3.438 g/W
2420 GF 6*4.5*2 5S 50 11.4 A — 1038 g 4.336 g/W
2420 GF 6*4.5*2 5S 100 45.9 A — 2410 g 2.5 g/W

Manufacturer bench figures (RCinPower bench, three KV sheets (1860, 2020, 2420), five 5in and 6in props each at two voltages, 50% and 100% throttle; no RPM published); real-world thrust varies with ESC, battery sag and prop condition.

Thrust-to-weight with this motor

RPM & prop speed on this motor

Props in this motor's class

PropSizeBladesWeight
Gemfan Long Range 5126-2 Durable 1.5mm T-Mount 5.1x2.7 2 2.6 g
HQProp DP 5.1x2.5x3 5.1x2.5 3 3.1 g
HQProp Juicy J37 4.9x3.7 3 3.4 g
HQProp Juicy J40 5.1x4.0 3 3.4 g
Gemfan 4935 Sbang 3-Blade 4.9x3.5 3 3.45 g

Where this data comes from

RCinPower publishes this motor at www.rcinpower.com/G-SERIES/40.html as "WASP MAJOR", three data sheets headed "Wasp Major - 22.6-6.5" at 1860, 2020 and 2420 KV. Identity against our retail listing is five figures shared to the digit: 22.6 mm stator diameter, 6.5 mm stator length, 30.5 g with 3 cm wire, and 1860 and 2420 KV both appearing as sheet titles. It is not the neighbouring product: the Wasp Major V2 (www.rcinpower.com/G-SERIES/67.html) is a 22.6-6.6 stator at 1980 and 2100 KV weighing 29.5 g, and the V2 King we publish separately is 2160 KV. 12N14P, 4 mm hollow shaft. The printed motor dimension Phi 28.49x30.6 mm is body plus shaft - the side view dimensions it as 18 mm plus 12.60 mm, which sum to the 30.6. Five things are reproduced as printed rather than corrected or guessed: (1) the three sheets give three cell ranges - 5~6S at 1860 and 2020 KV, 4~5S at 2420 KV - and are benched accordingly (21 and 24 V on the first two, 16 and 21 V on the third), while the retail listings we cite state 4-5S for the whole model; a multi-winding motor with no family cell count is an open question for this dataset, not something this entry decides. (2) The 2020 KV sheet tabulates the GF 6*4.5*2 at 21 V only - its two 24 V cells are printed empty - so that sheet carries 18 rows where the other two carry 20, and the missing run is named rather than interpolated. (3) The spec block's Max Continuous Power and Max Current, which on five earlier RCinPower sheets were the top row of that sheet's own table, land on no row here and are labelled 5S on all three sheets: 900 W / 35 A at 1860 KV against a 5S maximum of 573.3 W / 27.3 A, 920 W / 38 A at 2020 KV against 703.5 W / 33.5 A, and 970 W / 46 A at 2420 KV against 963.9 W / 45.9 A - only the last is close, and its current rounds while its power is 6 W out. (4) The mounting-hole callout on all three drawings is below the resolution RCinPower published - the two span dimensions are a smudge that 16 and 18 both fit - so no mount pattern is recorded, the same verdict the 2107 Plus thread got. (5) The sheet image is served under the filename "2207Pluschanpinyemian01", a name recycled from another product; every sheet inside it is titled Wasp Major 22.6-6.5, so the content was read and the filename ignored. Temperature after 5 s at full throttle, by sheet: 1860 KV 61-76 degC on 5S and 73-85 on 6S; 2020 KV 64-79 on 5S and 75-85 on 6S; 2420 KV 60-77 on 4S and 74-89 on 5S, with the 85, 86 and 89 degC runs flagged HOT on the sheets themselves. The 2020 KV winding is not carried by our retail source; its rows are the manufacturer's and are labelled with their KV like the others.
