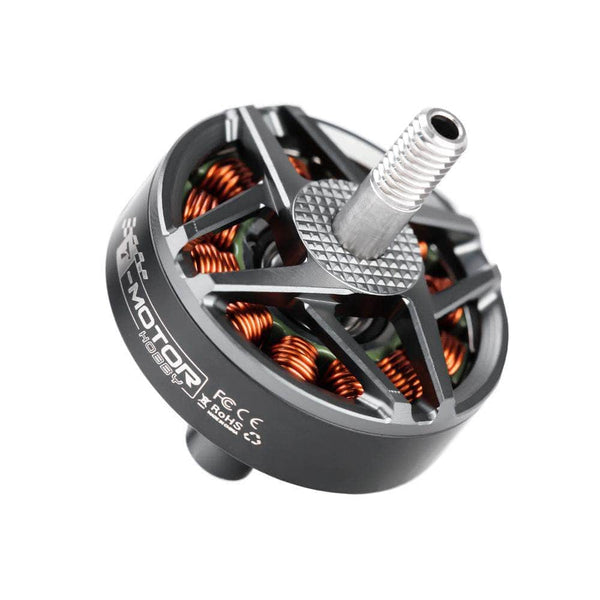

T-Motor F90 2806.5

T-Motor F90 2806.5
Image: racedayquads.com
Stator2806.5
KV options1300, 1500, 1950
Weight46.6 g
Shaft4mm
Max cells5-6S
Configuration12N14P
DimensionsØ33.4x34.7 mm
Winding resistance76 (1300KV) / 62 (1500KV) / 45 (1950KV) mOhm
Max thrust2360.61 g
Price (approx.)37.99 USD

At 46.6 g it is right at the class average across the 5 2806-class motors in our database (avg 46.3 g).

Thrust data (T-Motor bench test)

KVPropBatteryThrottleCurrentRPMThrustEfficiency
1300 HQProp HQ7040.3 6S 30 2.14 A 8192 353.46 g 6.8 g/W
1300 HQProp HQ7040.3 6S 35 3.31 A 9342 478.74 g 5.97 g/W
1300 HQProp HQ7040.3 6S 40 4.55 A 10488 596.38 g 5.42 g/W
1300 HQProp HQ7040.3 6S 45 6.71 A 11716 758.3 g 4.68 g/W
1300 HQProp HQ7040.3 6S 50 8.83 A 12801 947.57 g 4.45 g/W
1300 HQProp HQ7040.3 6S 55 11.29 A 13891 1131.8 g 4.17 g/W
1300 HQProp HQ7040.3 6S 60 14.27 A 14807 1290.19 g 3.77 g/W
1300 HQProp HQ7040.3 6S 70 20.64 A 16402 1585.74 g 3.22 g/W
1300 HQProp HQ7040.3 6S 80 27.73 A 17739 1865.32 g 2.83 g/W
1300 HQProp HQ7040.3 6S 90 36.73 A 18865 2210.2 g 2.55 g/W
1300 HQProp HQ7040.3 6S 100 45.11 A 19617 2360.61 g 2.23 g/W
1300 Gemfan GF7042 6S 30 1.78 A 8506 319.66 g 7.39 g/W
1300 Gemfan GF7042 6S 35 2.62 A 9659 433.5 g 6.83 g/W
1300 Gemfan GF7042 6S 40 3.86 A 10772 552.09 g 5.91 g/W
1300 Gemfan GF7042 6S 45 5.22 A 12021 697.52 g 5.53 g/W
1300 Gemfan GF7042 6S 50 7.22 A 13240 836.04 g 4.8 g/W
1300 Gemfan GF7042 6S 55 9.24 A 14379 988.93 g 4.44 g/W
1300 Gemfan GF7042 6S 60 12.15 A 15407 1196.6 g 4.1 g/W
1300 Gemfan GF7042 6S 70 18.25 A 17166 1474.19 g 3.37 g/W
1300 Gemfan GF7042 6S 80 24.52 A 18809 1783.25 g 3.05 g/W
1300 Gemfan GF7042 6S 90 32.06 A 20211 1969.91 g 2.59 g/W
1300 Gemfan GF7042 6S 100 41.26 A 21357 2116.55 g 2.18 g/W
1500 HQProp HQ7040.3 6S 30 2.95 A 8760 447.12 g 6.33 g/W
1500 HQProp HQ7040.3 6S 35 4.53 A 9949 581.32 g 5.37 g/W
1500 HQProp HQ7040.3 6S 40 6.6 A 11267 733.34 g 4.65 g/W
1500 HQProp HQ7040.3 6S 45 9.04 A 12483 877.5 g 4.08 g/W
1500 HQProp HQ7040.3 6S 50 11.85 A 13538 1033.22 g 3.67 g/W
1500 HQProp HQ7040.3 6S 55 15.0 A 14445 1187.19 g 3.34 g/W
1500 HQProp HQ7040.3 6S 60 18.65 A 15178 1361.51 g 3.09 g/W
1500 HQProp HQ7040.3 6S 70 25.42 A 16570 1640.76 g 2.75 g/W
1500 HQProp HQ7040.3 6S 80 34.52 A 17025 1793.87 g 2.23 g/W
1500 HQProp HQ7040.3 6S 90 39.54 A 18122 1983.76 g 2.17 g/W
1500 HQProp HQ7040.3 6S 100 47.37 A 18501 2102.78 g 1.93 g/W
1500 Gemfan GF7042 6S 30 2.76 A — 432.05 g 6.54 g/W
1500 Gemfan GF7042 6S 35 4.04 A — 549.31 g 5.68 g/W
1500 Gemfan GF7042 6S 40 5.96 A — 699.29 g 4.91 g/W
1500 Gemfan GF7042 6S 45 8.11 A — 839.58 g 4.34 g/W
1500 Gemfan GF7042 6S 50 10.62 A — 980.0 g 3.88 g/W
1500 Gemfan GF7042 6S 55 13.56 A — 1134.08 g 3.52 g/W
1500 Gemfan GF7042 6S 60 16.53 A — 1293.48 g 3.31 g/W
1500 Gemfan GF7042 6S 70 26.05 A — 1475.6 g 2.41 g/W
1500 Gemfan GF7042 6S 80 31.12 A — 1642.99 g 2.26 g/W
1500 Gemfan GF7042 6S 90 39.27 A — 1765.77 g 1.94 g/W
1500 Gemfan GF7042 6S 100 47.07 A — 1840.71 g 1.7 g/W
1500 T-Motor T6143 6S 30 1.84 A 9810 280.07 g 6.34 g/W
1500 T-Motor T6143 6S 35 2.86 A 11345 378.01 g 5.51 g/W
1500 T-Motor T6143 6S 40 4.14 A 12852 489.09 g 4.94 g/W
1500 T-Motor T6143 6S 45 5.58 A 14198 596.88 g 4.47 g/W
1500 T-Motor T6143 6S 50 7.01 A 15518 686.68 g 4.1 g/W
1500 T-Motor T6143 6S 55 8.86 A 16693 811.55 g 3.84 g/W
1500 T-Motor T6143 6S 60 10.95 A 17812 930.0 g 3.57 g/W
1500 T-Motor T6143 6S 70 15.83 A 19986 1185.39 g 3.16 g/W
1500 T-Motor T6143 6S 80 21.6 A 21879 1451.51 g 2.85 g/W
1500 T-Motor T6143 6S 90 28.24 A 23664 1708.33 g 2.58 g/W
1500 T-Motor T6143 6S 100 35.73 A 25185 1961.04 g 2.35 g/W
1950 Gemfan GF51466-3 5S 30 4.87 A 15006 381.97 g 3.73 g/W
1950 Gemfan GF51466-3 5S 35 6.32 A 16431 460.38 g 3.47 g/W
1950 Gemfan GF51466-3 5S 40 7.88 A 17729 540.15 g 3.27 g/W
1950 Gemfan GF51466-3 5S 45 9.46 A 18694 614.83 g 3.1 g/W
1950 Gemfan GF51466-3 5S 50 10.98 A 19742 679.57 g 2.96 g/W
1950 Gemfan GF51466-3 5S 55 12.59 A 20552 758.97 g 2.88 g/W
1950 Gemfan GF51466-3 5S 60 14.18 A 21552 835.59 g 2.82 g/W
1950 Gemfan GF51466-3 5S 70 18.39 A 23517 1002.77 g 2.62 g/W
1950 Gemfan GF51466-3 5S 80 24.02 A 25691 1231.68 g 2.47 g/W
1950 Gemfan GF51466-3 5S 90 32.03 A 28418 1518.36 g 2.3 g/W
1950 Gemfan GF51466-3 5S 100 41.56 A 30594 1784.09 g 2.09 g/W
1950 T-Motor T6143-3 5S 30 5.45 A 12345 470.8 g 4.12 g/W
1950 T-Motor T6143-3 5S 35 6.66 A 13493 556.57 g 3.99 g/W
1950 T-Motor T6143-3 5S 40 8.28 A 14368 649.36 g 3.75 g/W
1950 T-Motor T6143-3 5S 45 10.05 A 15644 743.71 g 3.54 g/W
1950 T-Motor T6143-3 5S 50 12.54 A 16697 847.35 g 3.24 g/W
1950 T-Motor T6143-3 5S 55 14.82 A 17801 967.26 g 3.13 g/W
1950 T-Motor T6143-3 5S 60 18.45 A 18771 1094.46 g 2.85 g/W
1950 T-Motor T6143-3 5S 70 25.62 A 21001 1369.87 g 2.58 g/W
1950 T-Motor T6143-3 5S 80 33.87 A 22618 1631.36 g 2.34 g/W
1950 T-Motor T6143-3 5S 90 43.76 A 24810 1947.18 g 2.17 g/W
1950 T-Motor T6143-3 5S 100 54.06 A 26217 2136.75 g 1.96 g/W
1950 Gemfan GF51466-3 6S 30 6.19 A 17140 511.25 g 3.27 g/W
1950 Gemfan GF51466-3 6S 35 8.01 A 18627 605.24 g 3.0 g/W
1950 Gemfan GF51466-3 6S 40 9.95 A 19888 694.1 g 2.77 g/W
1950 Gemfan GF51466-3 6S 45 11.86 A 21186 791.86 g 2.65 g/W
1950 Gemfan GF51466-3 6S 50 13.85 A 22321 888.81 g 2.55 g/W
1950 Gemfan GF51466-3 6S 55 16.02 A 23239 967.94 g 2.41 g/W
1950 Gemfan GF51466-3 6S 60 17.38 A 24238 1057.16 g 2.43 g/W
1950 Gemfan GF51466-3 6S 70 23.23 A 26896 1326.45 g 2.28 g/W
1950 Gemfan GF51466-3 6S 80 31.72 A 29478 1625.05 g 2.06 g/W
1950 Gemfan GF51466-3 6S 90 41.93 A 32422 1858.36 g 1.79 g/W
1950 Gemfan GF51466-3 6S 100 53.66 A 34173 2075.42 g 1.59 g/W

Manufacturer bench figures (T-Motor bench, eight runs across three KV: at 1300 KV HQProp HQ7040.3 and Gemfan GF7042 on 6S (~24.2 V); at 1500 KV HQProp HQ7040.3, Gemfan GF7042 and T-Motor T6143 on 6S (~23.9 V); at 1950 KV Gemfan GF51466-3 and T-Motor T6143-3 on 5S (~21.0 V) and Gemfan GF51466-3 on 6S (~25.2 V); 11 throttle points (30-60% in 5% steps, then 70-100% in 10% steps) on each run); real-world thrust varies with ESC, battery sag and prop condition.

Thrust-to-weight with this motor

RPM & prop speed on this motor

Props in this motor's class

PropSizeBladesWeight
APC 7x4 SF-B4 2-Blade 7.0x4.0 2 5.1 g
HQProp 7x5.5x2 7.0x5.5 2 6.4 g
Gemfan Cinelifter 7035 7x3.5x3 7.0x3.5 3 6.5 g
HQProp 7x4.5x2 Durable 7.0x4.5 2 6.6 g
HQProp MacroQuad 7x4.5 Glass Fiber Nylon CCW 7.0x4.5 2 6.8 g

Where this data comes from

Bench rows, the two extra windings and the winding resistances are from T-Motor's own F90 page on its store t-hobby.com (Specifications and Test Report images, read 2026-10-17 through the local browser because the site sits behind a Cloudflare check). Identity with the RaceDayQuads 1950 KV listing: 12N14P, a Ø33.4x34.7 mm body, a 4 mm shaft, 5-6S, a 20AWG 230 mm lead, 46.6 g including cable and 45 mΩ - the block's KV1950 column to the digit. kv_options goes from 1 to 3: the same block carries KV1300 (76 mΩ, 0.95 A idle, 45.1 A peak, 1059 W, 46.6 g) and KV1500 (62 mΩ, 1.2 A idle, 47.1 A peak, 1089 W, 46.7 g) on the same body, shaft and lead, and the report benches both. Max thrust is the 1300 KV HQProp HQ7040.3 6S 100% row, 2360.61 g, where the page carried none. All 88 rows reproduce the printed power as voltage x current and the printed efficiency as thrust / power. The block's peaks are report rows: 1300 KV 45.1 A / 1059 W is the HQ7040.3 100% row (45.11 A, 1059.16 W) and 1950 KV 53.6 A / 1302 W the GF51466-3 6S 100% row (53.66 A, 1301.95 W); on the 1500 KV the two come from different runs - 1089 W is the HQ7040.3 row's 1089.99 W, 47.1 A the GF7042 row's 47.07 A. Three source facts recorded rather than repaired. First, and it is why 11 rows publish no RPM: the 1500 KV Gemfan GF7042 run prints an RPM column identical, all eleven cells, to the 1300 KV GF7042 run (8506 ... 21357), while its current, power and thrust differ from that run on every row; a copied column, so rpm is empty on that run. Second, on both 7-inch props the 1500 KV winding peaks lower than the 1300 KV - 2102.78 against 2360.61 g on the HQ7040.3, 1840.71 against 2116.55 g on the GF7042 - at more current, and its HQ7040.3 run tops out at 18501 rpm against the 1300 KV's 19617; every row is internally consistent and it is published as printed. Third, the sheet defines motor temperature as surface temperature at 100% throttle after 1 minute: 96 and 93 °C at 1300 KV (HQ7040.3, GF7042; ambient 27 °C), 99, 96 and 97 °C at 1500 KV (HQ7040.3, GF7042, T6143; ambient 27 °C), and 81, 88 and 93 °C at 1950 KV (GF51466-3 5S, T6143-3 5S, GF51466-3 6S; ambient 16 °C). Prop names are the sheet's with the brand prefixed: it prints "HQ 70403" for the HQProp 7040.3, "GF 7042", "T6143" on the 1500 KV and "T6143-3" on the 1950 KV runs, "GF51466-3". The drawing image on the page is a product photo without a mount dimension, so mount_mm stays empty
