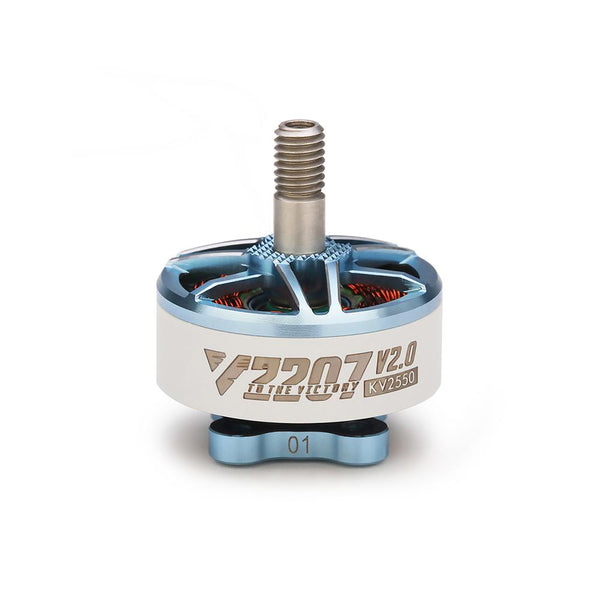

T-Motor VELOX V2 2207

T-Motor VELOX V2 2207
Image: racedayquads.com
Stator2207
KV options1750, 1950, 2550
Weight34.3 g
Shaft4mm
Max cells5-6S
Configuration12N14P
DimensionsØ27.5x31.35 mm
Winding resistance59 (1750KV) / 50 (1950KV) / 43 (2550KV) mOhm
Max thrust1879.29 g
Price (approx.)17.99 USD

At 34.3 g it is 1.2 g heavier than average across the 40 2207-class motors in our database (avg 33.1 g).

Thrust data (T-Motor bench test)

KVPropBatteryThrottleCurrentRPMThrustEfficiency
1750 T-Motor T5143S 6S 50 6.79 A 18740 546.27 g 3.39 g/W
1750 T-Motor T5143S 6S 55 8.56 A 20236 632.89 g 3.12 g/W
1750 T-Motor T5143S 6S 60 10.87 A 21842 740.45 g 2.89 g/W
1750 T-Motor T5143S 6S 65 10.87 A 23209 841.01 g 3.29 g/W
1750 T-Motor T5143S 6S 70 15.66 A 24628 943.32 g 2.58 g/W
1750 T-Motor T5143S 6S 75 18.62 A 25890 1061.21 g 2.45 g/W
1750 T-Motor T5143S 6S 80 20.92 A 26895 1140.46 g 2.35 g/W
1750 T-Motor T5143S 6S 85 24.05 A 28151 1249.5 g 2.26 g/W
1750 T-Motor T5143S 6S 90 27.15 A 29125 1343.13 g 2.16 g/W
1750 T-Motor T5143S 6S 95 30.54 A 30101 1427.46 g 2.06 g/W
1750 T-Motor T5143S 6S 100 34.11 A 31085 1507.11 g 1.96 g/W
1750 T-Motor T5146 6S 50 6.6 A 18257 631.3 g 4.03 g/W
1750 T-Motor T5146 6S 55 8.6 A 19762 728.37 g 3.58 g/W
1750 T-Motor T5146 6S 60 11.01 A 21153 848.61 g 3.28 g/W
1750 T-Motor T5146 6S 65 13.59 A 22456 964.03 g 3.03 g/W
1750 T-Motor T5146 6S 70 16.44 A 23912 1084.83 g 2.83 g/W
1750 T-Motor T5146 6S 75 19.56 A 24974 1205.04 g 2.66 g/W
1750 T-Motor T5146 6S 80 22.73 A 26124 1316.56 g 2.51 g/W
1750 T-Motor T5146 6S 85 25.42 A 27065 1413.27 g 2.42 g/W
1750 T-Motor T5146 6S 90 29.16 A 28047 1523.67 g 2.3 g/W
1750 T-Motor T5146 6S 95 32.55 A 28888 1556.51 g 2.12 g/W
1750 T-Motor T5146 6S 100 36.0 A 29442 1636.43 g 2.03 g/W
1750 T-Motor T5147 6S 50 6.76 A 18107 620.19 g 3.86 g/W
1750 T-Motor T5147 6S 55 8.91 A 19502 724.47 g 3.44 g/W
1750 T-Motor T5147 6S 60 11.36 A 20886 844.4 g 3.16 g/W
1750 T-Motor T5147 6S 65 14.18 A 22190 973.74 g 2.93 g/W
1750 T-Motor T5147 6S 70 17.04 A 23589 1086.9 g 2.74 g/W
1750 T-Motor T5147 6S 75 20.09 A 24682 1200.06 g 2.58 g/W
1750 T-Motor T5147 6S 80 23.34 A 25759 1314.22 g 2.45 g/W
1750 T-Motor T5147 6S 85 25.96 A 26475 1400.57 g 2.36 g/W
1750 T-Motor T5147 6S 90 29.75 A 27458 1514.68 g 2.24 g/W
1750 T-Motor T5147 6S 95 32.62 A 27996 1584.93 g 2.16 g/W
1750 T-Motor T5147 6S 100 36.64 A 29021 1681.04 g 2.06 g/W
1750 T-Motor T5150 6S 50 6.72 A 18154 636.19 g 3.98 g/W
1750 T-Motor T5150 6S 55 8.77 A 19528 735.95 g 3.55 g/W
1750 T-Motor T5150 6S 60 11.21 A 20912 854.07 g 3.24 g/W
1750 T-Motor T5150 6S 65 13.89 A 22320 972.31 g 2.99 g/W
1750 T-Motor T5150 6S 70 16.98 A 23588 1099.64 g 2.78 g/W
1750 T-Motor T5150 6S 75 20.01 A 24728 1213.53 g 2.62 g/W
1750 T-Motor T5150 6S 80 23.15 A 25701 1318.47 g 2.47 g/W
1750 T-Motor T5150 6S 85 25.79 A 26629 1407.65 g 2.38 g/W
1750 T-Motor T5150 6S 90 29.58 A 27315 1491.95 g 2.22 g/W
1750 T-Motor T5150 6S 95 32.94 A 28193 1598.73 g 2.16 g/W
1750 T-Motor T5150 6S 100 35.53 A 29010 1679.43 g 2.12 g/W
1950 T-Motor T5143S 6S 50 9.41 A 20048 623.88 g 2.81 g/W
1950 T-Motor T5143S 6S 55 11.92 A 21881 737.38 g 2.63 g/W
1950 T-Motor T5143S 6S 60 14.73 A 23163 860.46 g 2.49 g/W
1950 T-Motor T5143S 6S 65 17.6 A 24923 958.96 g 2.34 g/W
1950 T-Motor T5143S 6S 70 20.52 A 26217 1066.89 g 2.24 g/W
1950 T-Motor T5143S 6S 75 23.73 A 27223 1172.75 g 2.14 g/W
1950 T-Motor T5143S 6S 80 27.14 A 28416 1266.72 g 2.04 g/W
1950 T-Motor T5143S 6S 85 30.59 A 29734 1369.96 g 1.97 g/W
1950 T-Motor T5143S 6S 90 34.28 A 30741 1462.24 g 1.89 g/W
1950 T-Motor T5143S 6S 95 38.31 A 31618 1558.37 g 1.82 g/W
1950 T-Motor T5143S 6S 100 42.29 A 32509 1650.69 g 1.77 g/W
1950 T-Motor T5146 6S 50 9.54 A 19750 748.66 g 3.32 g/W
1950 T-Motor T5146 6S 55 12.21 A 21328 874.22 g 3.04 g/W
1950 T-Motor T5146 6S 60 15.43 A 22554 1011.51 g 2.8 g/W
1950 T-Motor T5146 6S 65 18.52 A 24064 1131.1 g 2.63 g/W
1950 T-Motor T5146 6S 70 21.64 A 25248 1246.24 g 2.49 g/W
1950 T-Motor T5146 6S 75 25.18 A 26397 1360.86 g 2.35 g/W
1950 T-Motor T5146 6S 80 28.54 A 27370 1453.04 g 2.23 g/W
1950 T-Motor T5146 6S 85 32.3 A 28267 1522.74 g 2.09 g/W
1950 T-Motor T5146 6S 90 36.11 A 29274 1610.97 g 1.99 g/W
1950 T-Motor T5146 6S 95 40.0 A 30186 1706.75 g 1.93 g/W
1950 T-Motor T5146 6S 100 44.09 A 30751 1798.78 g 1.86 g/W
1950 T-Motor T5147 6S 50 10.21 A 19339 798.03 g 3.31 g/W
1950 T-Motor T5147 6S 55 13.0 A 20855 923.5 g 3.02 g/W
1950 T-Motor T5147 6S 60 16.33 A 22449 1060.88 g 2.78 g/W
1950 T-Motor T5147 6S 65 19.49 A 23741 1188.29 g 2.62 g/W
1950 T-Motor T5147 6S 70 22.97 A 25020 1314.01 g 2.48 g/W
1950 T-Motor T5147 6S 75 26.5 A 25974 1423.79 g 2.34 g/W
1950 T-Motor T5147 6S 80 29.83 A 26835 1522.14 g 2.24 g/W
1950 T-Motor T5147 6S 85 33.8 A 27787 1634.91 g 2.14 g/W
1950 T-Motor T5147 6S 90 38.03 A 28653 1724.08 g 2.03 g/W
1950 T-Motor T5147 6S 95 42.02 A 29440 1825.55 g 1.97 g/W
1950 T-Motor T5147 6S 100 45.89 A 30076 1879.29 g 1.87 g/W
1950 T-Motor T5150 6S 50 9.68 A 19504 749.86 g 3.28 g/W
1950 T-Motor T5150 6S 55 12.45 A 20974 879.11 g 3.0 g/W
1950 T-Motor T5150 6S 60 15.89 A 22496 1018.83 g 2.74 g/W
1950 T-Motor T5150 6S 65 18.74 A 23794 1134.13 g 2.6 g/W
1950 T-Motor T5150 6S 70 22.25 A 25013 1260.52 g 2.45 g/W
1950 T-Motor T5150 6S 75 25.97 A 26069 1380.46 g 2.31 g/W
1950 T-Motor T5150 6S 80 29.26 A 26950 1482.92 g 2.22 g/W
1950 T-Motor T5150 6S 85 33.2 A 27948 1587.88 g 2.12 g/W
1950 T-Motor T5150 6S 90 37.34 A 28771 1683.57 g 2.02 g/W
1950 T-Motor T5150 6S 95 41.25 A 29574 1781.08 g 1.95 g/W
1950 T-Motor T5150 6S 100 45.27 A 29890 1852.5 g 1.87 g/W
2550 T-Motor T5143S 4S 50 8.04 A 17120 434.91 g 3.44 g/W
2550 T-Motor T5143S 4S 55 9.86 A 18275 504.63 g 3.27 g/W
2550 T-Motor T5143S 4S 60 12.03 A 19542 582.38 g 3.11 g/W
2550 T-Motor T5143S 4S 65 14.43 A 20805 667.2 g 2.99 g/W
2550 T-Motor T5143S 4S 70 17.08 A 21918 751.66 g 2.86 g/W
2550 T-Motor T5143S 4S 75 19.89 A 22934 826.58 g 2.72 g/W
2550 T-Motor T5143S 4S 80 22.78 A 23983 891.57 g 2.58 g/W
2550 T-Motor T5143S 4S 85 25.34 A 24716 957.23 g 2.51 g/W
2550 T-Motor T5143S 4S 90 27.78 A 25303 1006.71 g 2.43 g/W
2550 T-Motor T5143S 4S 95 30.94 A 26129 1089.01 g 2.39 g/W
2550 T-Motor T5143S 4S 100 34.18 A 26774 1195.21 g 2.41 g/W
2550 T-Motor T5146 4S 50 8.8 A 16782 519.28 g 3.75 g/W
2550 T-Motor T5146 4S 55 10.9 A 17906 594.62 g 3.49 g/W
2550 T-Motor T5146 4S 60 13.33 A 19004 680.06 g 3.28 g/W
2550 T-Motor T5146 4S 65 15.89 A 20165 764.89 g 3.12 g/W
2550 T-Motor T5146 4S 70 18.73 A 21141 854.32 g 2.98 g/W
2550 T-Motor T5146 4S 75 21.4 A 22170 927.61 g 2.86 g/W
2550 T-Motor T5146 4S 80 24.68 A 23021 1012.03 g 2.73 g/W
2550 T-Motor T5146 4S 85 28.1 A 23830 1095.63 g 2.62 g/W
2550 T-Motor T5146 4S 90 30.52 A 24546 1144.85 g 2.54 g/W
2550 T-Motor T5146 4S 95 33.59 A 25169 1205.63 g 2.46 g/W
2550 T-Motor T5146 4S 100 37.12 A 25620 1252.81 g 2.35 g/W
2550 T-Motor T5147 4S 50 9.16 A 16494 527.38 g 3.67 g/W
2550 T-Motor T5147 4S 55 11.28 A 17594 600.26 g 3.41 g/W
2550 T-Motor T5147 4S 60 13.69 A 18672 682.58 g 3.22 g/W
2550 T-Motor T5147 4S 65 16.28 A 19752 756.99 g 3.03 g/W
2550 T-Motor T5147 4S 70 19.23 A 20680 850.7 g 2.9 g/W
2550 T-Motor T5147 4S 75 22.13 A 21698 934.81 g 2.8 g/W
2550 T-Motor T5147 4S 80 25.24 A 22397 1018.0 g 2.69 g/W
2550 T-Motor T5147 4S 85 28.39 A 23365 1085.56 g 2.58 g/W
2550 T-Motor T5147 4S 90 31.48 A 24030 1148.87 g 2.49 g/W
2550 T-Motor T5147 4S 95 34.42 A 24537 1208.06 g 2.42 g/W
2550 T-Motor T5147 4S 100 38.18 A 24904 1259.14 g 2.31 g/W
2550 T-Motor T5150 4S 50 9.07 A 16535 533.51 g 3.75 g/W
2550 T-Motor T5150 4S 55 11.18 A 17583 611.09 g 3.5 g/W
2550 T-Motor T5150 4S 60 13.45 A 18691 688.44 g 3.31 g/W
2550 T-Motor T5150 4S 65 16.14 A 19829 771.53 g 3.11 g/W
2550 T-Motor T5150 4S 70 19.09 A 20753 867.41 g 2.98 g/W
2550 T-Motor T5150 4S 75 21.85 A 21852 941.78 g 2.85 g/W
2550 T-Motor T5150 4S 80 25.06 A 22631 1025.03 g 2.73 g/W
2550 T-Motor T5150 4S 85 28.27 A 23402 1097.78 g 2.62 g/W
2550 T-Motor T5150 4S 90 31.45 A 24064 1163.69 g 2.52 g/W
2550 T-Motor T5150 4S 95 34.47 A 24481 1193.37 g 2.39 g/W
2550 T-Motor T5150 4S 100 37.69 A 25148 1271.51 g 2.36 g/W

Manufacturer bench figures (T-Motor bench, four T-Motor 5in props (T5143S, T5146, T5147, T5150) across three KV: 1750 and 1950 KV at 6S (23 V), 2550 KV at 4S (15 V); 11 throttle points (50-100% in 5% steps) on each); real-world thrust varies with ESC, battery sag and prop condition.

Thrust-to-weight with this motor

RPM & prop speed on this motor

Props in this motor's class

PropSizeBladesWeight
Gemfan Long Range 5126-2 Durable 1.5mm T-Mount 5.1x2.7 2 2.6 g
HQProp DP 5.1x2.5x3 5.1x2.5 3 3.1 g
HQProp Juicy J37 4.9x3.7 3 3.4 g
HQProp Juicy J40 5.1x4.0 3 3.4 g
Gemfan 4935 Sbang 3-Blade 4.9x3.5 3 3.45 g

Where this data comes from

Bench rows, configuration, dimensions and winding resistances are from T-Motor's own "Test Report", "Specifications" and "Product Drawing" images on tmotorhobby.com/goods-984.html, where the motor is sold as VELOX VELOCE V2207 and the report's own Type column reads "V2207 V2". Identity with our retail listings is the 2207 stator, a 4 mm shaft, 34.3 g and both KV RaceDayQuads sells - 1950 and 2550 - appearing as Specifications blocks and as Types in the report. The block and the report carry a third winding, 1750 KV, which our two retail listings do not sell although T-Motor's own page title names all three, so kv_options gains it. The three blocks give 35.1 g incl. cable / 31.3 g excl. and 59 mOhm at 1750 KV, 35.2 / 31.4 g and 50 mOhm at 1950 KV, and 34.3 / 30.5 g and 43 mOhm at 2550 KV, so the published 34.3 g is the 2550 KV winding's weight including its cable; idle current at 10 V is 1.1 / 1.3 / 1.9 A. max_cells stays 5-6S, which is the rating of the two 6S windings: the 2550 KV one is rated 4S and is benched at 4S while the other two run at 6S. The spec-block cross-check lands on one winding of three and is the reason to run it: at 1950 KV the block's Max. Power (60s) / Peak Current (60s) is the T5147 100% row truncated (1003 W / 45.8 A against 1003.03 W / 45.89 A), and that row is both columns' maximum; at 1750 KV the 36.6 A is T5147's 36.64 A and is the current column's maximum, but the 804 W beside it is T5146's 100% row (804.31 W) and not the winding's highest power, which is T5147's 815.68 W; and at 2550 KV the 545 W is T5147's 545.98 W truncated while the 38.6 A is in no row of that winding's table and is above its own highest current, 38.18 A. All 132 rows match the efficiency printed beside them against the sheet's own power column AND reproduce that column as voltage x current, with no prop run carrying an offset (the largest per-run mean is 0.0023 A). Three source facts recorded rather than repaired: the 1750 KV T5143S 65% row prints the same 10.87 A as its 60% row, so its power falls (255.30 W against 256.48 W) while thrust rises 740.45 -> 841.01 g and its printed 3.29 g/W is above the 60% row's 2.89 - the row is internally consistent, it is the current column that repeats; the 1750 KV T5146 run gains only 32.84 g between 90 and 95% throttle (1523.67 -> 1556.51 g) where every other step on that run adds over 100 g; and the drawing calls out four M3 holes on a plain O16 between opposite holes, which is a 16 mm bolt circle and not the 16x16 square the mount column holds, so mount_mm stays empty. All three report sections were run at 19 degC ambient, and the surface temperatures at full throttle are 92-100 degC at 1750 KV, 92-100 at 1950 KV and 93-101 at 2550 KV.
