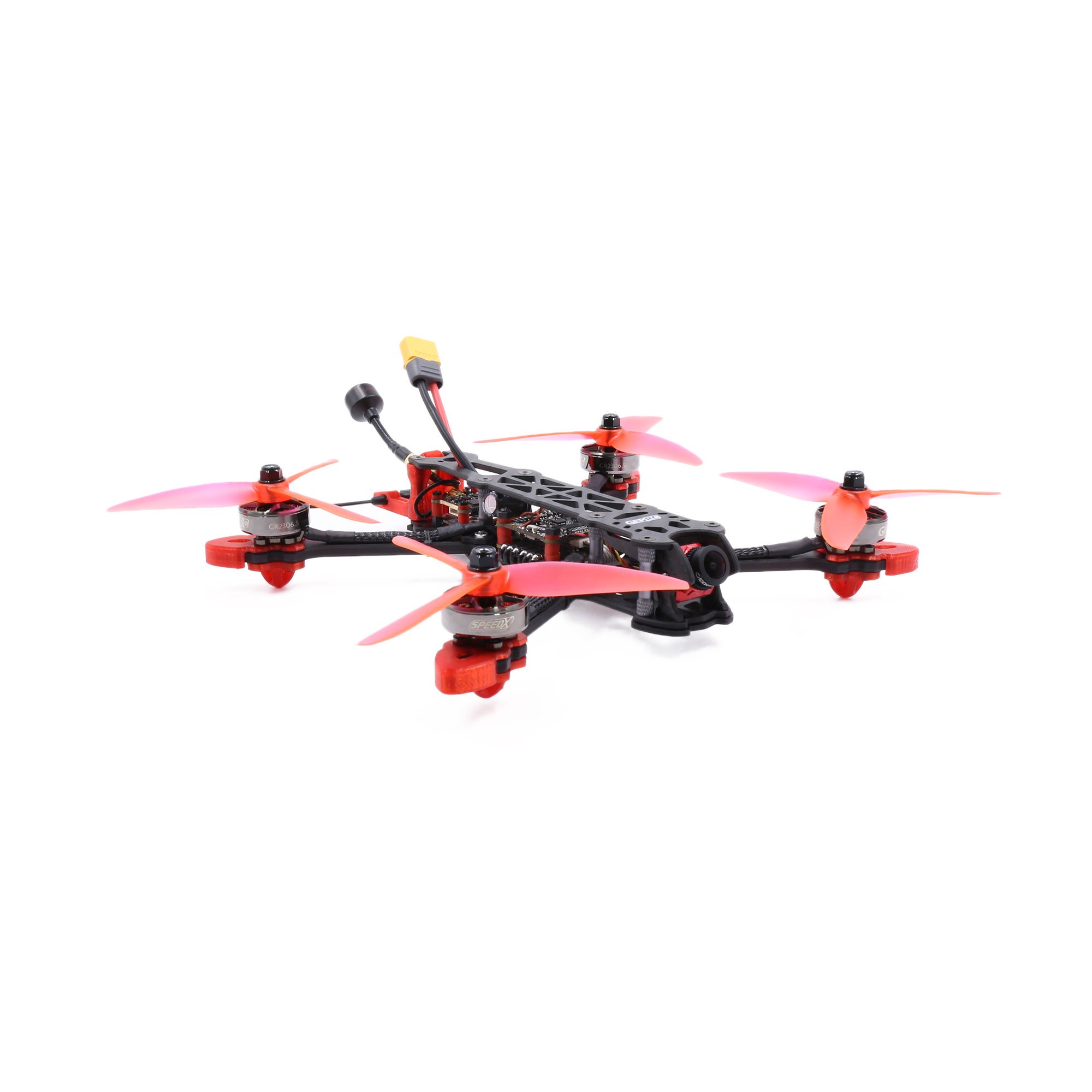

GEPRC Mark4
At 346 g dry the Mark4 is 535-589 g ready to fly on the 6 matching 6S packs listed below (1300 mAh): the pack is 35-41% of all-up weight.
| Class | freestyle |
|---|---|
| Wheelbase | 225 mm |
| Weight (no battery) | 346 g |
| Prop size | 5.1 " |
| Prop mount | M5 |
| Motors | GEPRC 2306.5 1850KV (6S) / 2450KV (4S) |
| VTX system | Caddx Nebula HD (analog variants) |
| Camera | Caddx Ratel |
| Flight controller | SPAN F722-BT-HD V2 |
| Receiver options | Without Receiver/Frsky R-XSR / Frsky XM+ / FS-A8S v2 / TBS Nano RX |
What battery does the Mark4 use?
| Cells | 6S |
|---|---|
| Capacity | 1300 mAh |
| Recommended range | 1100-1400 mAh |
| Connector | XT60 |
| Chemistry | LiPo |
Matching packs from our database
All-up weight is this quad's 346 g dry weight plus the pack's own weight.
| Battery | mAh | C | Weight | All-up weight | Price/Wh |
|---|---|---|---|---|---|
| CNHL Black Series V2.0 1300mAh 6S | 1300 | 130C | 223.0 g | 569 g | $1.26 |
| GNB RDQ Series 1300mAh 6S | 1300 | 100C | 243.0 g | 589 g | $1.26 |
| Tattu FunFly 1300mAh 6S | 1300 | 100C | 225.0 g | 571 g | $1.37 |
| GNB Gaoneng 1300mAh 6S | 1300 | 120C | 189.0 g | 535 g | $1.55 |
| Dogcom 1300mAh 6S | 1300 | 150C | 216.0 g | 562 g | $1.59 |
| RDQ RDQ Series 1300mAh 6S | 1300 | 120C | 193.0 g | 539 g | $1.72 |
Mark4 flight time
The Mark4 flies ≈ 4.8 min on the 1300 mAh pack listed above at our 13 A cruise-current estimate, with 80% of a pack used.
Where this data comes from
Legacy freestyle platform (pre-Mark5), 225mm. GEPRC G5x4.3x3 props.
